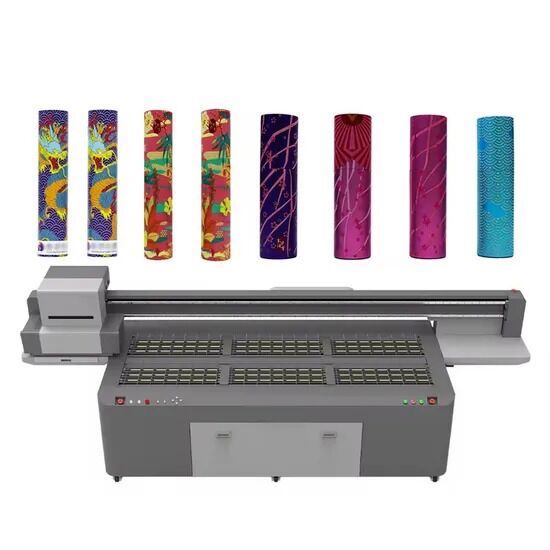

Versatile Digital Cylinder UV Printer for Bottles and Glassware
Product Overview
This advanced digital cylinder UV printer delivers exceptional printing quality on bottles, glassware, and cylindrical objects with precision engineering and intelligent maintenance features.
Key Features
- High Precision: 3.5pl droplet size provides optimal balance between throughput and print quality for various applications
- High Resolution: Multiple inkjet schemes adapt to different printing materials with accurate colors, distinct layers, and uniform transitions
- Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working states prevents blockage from ink curing
Technical Specifications
| Equipment Model |
CF-2510 (Duplex) |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Nozzle Specifications |
Effective orifice: 1280 | Ink drop volume: 3.5PL | Nozzle length: 27MM | Single nozzle color: 4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distribution and wholesale of UV printers, including single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers.
Our 2500 m² factory in Panyu, Guangzhou, Guangdong Province employs over 10 R&D staff and 150 workers. We maintain ISO certification with strict quality control and production management, supporting OEM and ODM services.
With over 10 years of UV printer manufacturing experience, we have received positive feedback from clients worldwide. Our products are exported to France, Germany, Vietnam, India, and other countries, with CE and RoHS certifications.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
A: Printers with white ink function offer unlimited media compatibility. White ink generates high-quality graphics on hard or soft materials (such as acrylic boards or backlit films) and serves as a primer for printing on non-white materials. Varnish enhances picture brightness and extends UV ink fading period.
Q2: What materials can UV flatbed printers print on?
A: All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, and wood boards. UV printing eliminates coating, fading, and blistering issues while saving working hours. Suitable for rigid identification boards, hard cardboard, corrugated boxes, and special markets including glass, tiles, wood, and furniture.
Q3: Which languages does the RIP installation interface support?
A: Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
Q4: How is the after-sales service?
A: Our experienced technicians provide comprehensive technical support. We train customers until they fully master machine operation. Our technical team may travel internationally for machine testing and repair services.
Q5: Regarding printer maintenance
A: We recommend pressing the ink once daily when turning on the printer. For periods of non-use exceeding 10 days, clean the print head with cleaning fluid and maintain nozzle moisture.
Q6: Are you a factory or a foreign trade company?
A: We are a factory manufacturer, enabling us to provide printers at competitive prices with high-quality services.
